Relation operators

This page details the available relation operators when writing rules as part of the search route.

RelatedTo

The relatedTo operator will return all entities that have a relationship with the specified entity:

Structure

Field	Description
`operator`	Search operator to use when evaluating this rule, see a list of available operators below.
`blueprint`	Blueprint of the entity identifier specified in the `value` field.
`value`	Value to filter by.

{
  "operator": "relatedTo",
  "blueprint": "myBlueprint",
  "value": "myEntity"
}

The operator also supports multiple related entities as the searched value:

{
  "operator": "relatedTo",
  "blueprint": "myBlueprint",
  "value": ["myFirstEntity", "mySecondEntity"]
}

This query will return all of the entities that are related to one or more of the identifiers in the value array.

Required

The relatedTo operator also supports the required property - which allows you to search for:

Related entities from all relations (relations with either required true or false).
Related entities only from required relations (relations with required true).
Related entities only from non-required relations (relations with required false).

For example, to search only for related entities that require the myEntity entity from the myBlueprint blueprint, use the following search rule:

{
  "operator": "relatedTo",
  "required": true,
  "value": "myEntity",
  "blueprint": "myBlueprint"
}

Direction

The relatedTo operator also supports the direction property - which allows you to search for dependent entities in a specific direction on the dependency graph. To better understand the functionality of this property, let's take a look at the example below:

Let's assume that we have the blueprints deploymentConfig and microservice with the following relation definition (declared on the deploymentConfig blueprint):

"relations": {
  "microservice": {
    "description": "The service this Deployment Config belongs to",
    "many": false,
    "required": false,
    "target": "microservice",
    "title": "Microservice"
  }
}

In addition, we have the following entities:

Deployment Configs:
- Order-Service-Production
- Cart-Service-Production

Microservices:
- Order Service
- Cart Service

Environments:
- Production

And the following relations:

Order-Service-Production -> Order-Service
Order-Service-Production -> Production

Cart-Service-Production -> Cart-Service
Cart-Service-Production -> Production

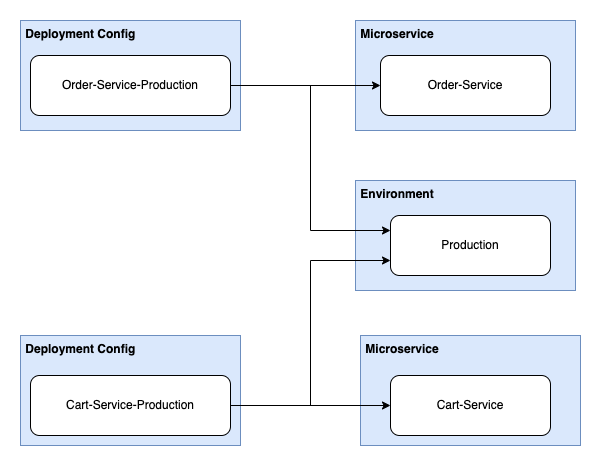

By looking at the resulting graph layout, we can also map the directions:

To search for entities which the source depends on - use "direction": "upstream".
To search for entities which depend on the source - use "direction": "downstream".

In the example shown above, if we want to get the Microservice and Environment that Order-Service-Production depends on, the search rule would be:

{
  "operator": "relatedTo",
  "blueprint": "deploymentConfig",
  "value": "Order-Service-Production",
  "direction": "upstream"
}

And the result shall be:

Order-Service-Production upstream related entities (click to expand)

{
  "ok": true,
  "matchingBlueprints": ["microservice", "environment"],
  "entities": [
    {
      "identifier": "Order-Service",
      "title": "Order-Service",
      "blueprint": "microservice",
      "properties": {
        "on-call": "mor@getport.io",
        "language": "Python",
        "slack-notifications": "https://slack.com/Order-Service",
        "launch-darkly": "https://launchdarkly.com/Order-Service"
      },
      "relations": {},
      "createdAt": "2022-11-17T15:54:20.432Z",
      "createdBy": "auth0|62ab380295b34240aa511cdb",
      "updatedAt": "2022-11-17T15:54:20.432Z",
      "updatedBy": "auth0|62ab380295b34240aa511cdb"
    },
    {
      "identifier": "Production",
      "title": "Production",
      "blueprint": "environment",
      "properties": {
        "awsRegion": "eu-west-1",
        "configUrl": "https://github.com/config-labs/kube/config.yml",
        "slackChannel": "https://yourslack.slack.com/archives/CHANNEL-ID",
        "onCall": "Mor P",
        "namespace": "Production"
      },
      "relations": {},
      "createdAt": "2022-09-19T08:54:23.025Z",
      "createdBy": "Cnc3SiO7T0Ld1y1u0BsBZFJn0SCiPeLS",
      "updatedAt": "2022-10-16T09:28:32.960Z",
      "updatedBy": "auth0|62ab380295b34240aa511cdb"
    }
  ]
}

If we want to get all of the deploymentConfigs that are deployed in the Production Environment, the search rule would be:

{
  "operator": "relatedTo",
  "blueprint": "environment",
  "value": "Production",
  "direction": "downstream"
}

And the result shall be:

Production downstream related entities (click to expand)

{
  "ok": true,
  "matchingBlueprints": ["deploymentConfig"],
  "entities": [
    {
      "identifier": "Order-Service-Production",
      "title": "Order-Service-Production",
      "blueprint": "deploymentConfig",
      "properties": {
        "url": "https://github.com/port-labs/order-service",
        "config": {
          "encryption": "SHA256"
        },
        "monitor-links": [
          "https://grafana.com",
          "https://prometheus.com",
          "https://datadog.com"
        ]
      },
      "relations": {
        "microservice": "Order-Service",
        "environment": "Production"
      },
      "createdAt": "2022-11-17T15:55:55.591Z",
      "createdBy": "auth0|62ab380295b34240aa511cdb",
      "updatedAt": "2022-11-17T15:55:55.591Z",
      "updatedBy": "auth0|62ab380295b34240aa511cdb"
    },
    {
      "identifier": "Cart-Service-Production",
      "title": "Cart-Service-Production",
      "blueprint": "deploymentConfig",
      "properties": {
        "url": "https://github.com/port-labs/cart-service",
        "config": {
          "foo": "bar"
        },
        "monitor-links": [
          "https://grafana.com",
          "https://prometheus.com",
          "https://datadog.com"
        ]
      },
      "relations": {
        "microservice": "Cart-Service",
        "environment": "Production"
      },
      "createdAt": "2022-11-17T15:55:10.714Z",
      "createdBy": "auth0|62ab380295b34240aa511cdb",
      "updatedAt": "2022-11-17T15:55:20.253Z",
      "updatedBy": "auth0|62ab380295b34240aa511cdb"
    }
  ]
}

MatchAny

The matchAny operator will match entities based on your input:

If you specify a single value, it will find all entities with the same identifier.
If you provide a list of values, it will match any entity whose identifier is in the list.

You can search for entities that are related through a specific path of relations. This is useful when you want to find entities that are connected through a specific chain of relationships.

Structure

Field	Description
`property.path`	An array containing the full path of relation identifiers to traverse.
`property.fromBlueprint`	(Optional) The blueprint to start the path traversal from. If omitted, traversal starts from the target blueprint.
`operator`	The search operator to use. For this feature, use `"matchAny"`.
`value`	The value or list of values to match against the target entity identifiers at the end of the path.

For upstream paths

{
  "property": {
    "path": ["relation1", "relation2", "relation3"]
  },
  "operator": "matchAny",
  "value": "targetEntity"
}

For downstream paths

{
  "property": {
    "path": ["relation1", "relation2", "relation3"],
    "fromBlueprint": "sourceBlueprint"
  },
  "operator": "matchAny",
  "value": "targetEntity"
}

When using downstream paths, the fromBlueprint parameter specifies the source blueprint from which to start the path traversal.

Instead of thinking about the path as downstream from the target, we treat it as upstream from the specified blueprint to the target blueprint. This means that the path will be traversed starting from entities of the specified fromBlueprint.

Examples

Suppose you have the following data model:

Dependency graph upstream downstream diagram

Example 1: Find all services related to a cluster (upstream)

To find all services that are related to a specific cluster (e.g., "production-cluster"):

{
  "combinator": "and",
  "rules": [
    {
      "property": "$blueprint",
      "operator": "=",
      "value": "service"
    },
    {
      "property": {
        "path": ["deployedOn"]
      },
      "operator": "matchAny",
      "value": "production-cluster"
    }
  ]
}

This will return all services that have a deployment in the "production-cluster".

Example 2: Find all deployments related to a specific service (downstream)

To find all deployments related to a specific service (e.g., "production-service"):

{
  "combinator": "and",
  "rules": [
    {
      "property": "$blueprint",
      "operator": "=",
      "value": "deployment"
    },
    {
      "property": {
        "path": ["deployedOn", "deployments"],
        "fromBlueprint": "service"
      },
      "operator": "matchAny",
      "value": "production-service"
    }
  ]
}

This will return all deployments that are related to the "production-service".

Self-relation

Self-relations allow a blueprint to reference itself, so entities of the same type can be connected.

In this example, a group is comprised of one or more domains, which are comprised of one or more tribes, and so on.
The diagram illustrates the hierarchy, where different entities are linked by the same self-relation (parent) within the Team blueprint.

You can use the matchAny operator to search through self-relations, allowing you to find entities at various levels of the hierarchy.

Examples

Example 1: basic self-relation with fixed hops count

If you want exactly 2 hops, specify the self-relation twice:

{
  "combinator": "and",
  "rules": [
    {
      "property": {
        "path": [
          "parent",
          "parent"
        ],
        "fromBlueprint" : "Team"
      },
      "operator": "matchAny",
      "value": "targetEntity"
    }
  ]
}

For example, if the value is Squad:

First hop: Squad → Tribe.
Second hop: Tribe → Domain.

Result: Domain (only the final destination after exactly 2 hops).

Example 2: self-relation with maxHops for variable hops

If you want a variable number of hops (between 1 and 15), use maxHops.
maxHops specifies the maximum number of hops to traverse through the self-relation.

{
  "combinator": "and",
  "rules": [
    {
      "property": {
        "path": [
          {
            "relation": "parent",
            "maxHops": 3
          }
        ],
        "fromBlueprint": "Team"
      },
      "operator": "matchAny",
      "value": "targetEntity"
    }
  ]
}

For example, if the value is Squad:

First hop: Squad → Tribe.
Second hop: Tribe → Domain.
Third hop: Domain → Group.

Result: Tribe, Domain and Group (all entities found along the path up to 3 hops).

maxHops limitation

The maxHops parameter can only be applied once per path, and it accepts values from 1 to 15.

Example 3: mixed approach

You can also mix fixed hops with variable hops. For example, if you specify the self-relation twice followed by a maxHops object, the system will start traversing from the 2 hops already made and continue with the additional hops specified in maxHops.

{
  "combinator": "and",
  "rules": [
    {
      "property": {
        "path": [
          "parent",
          "parent",
          {
            "relation": "parent",
            "maxHops": 3
          }
          ],
          "fromBlueprint": "Team"
        },
      "operator": "matchAny",
      "value": "targetEntity"
    }
  ]
}

For example, if the value is Squad:

First hop: Squad → Tribe.
Second hop: Tribe → Domain.
Third hop: Domain → Group.

Result: Domain (from fixed hops) and Group (from variable hops, up to 3 additional hops).
